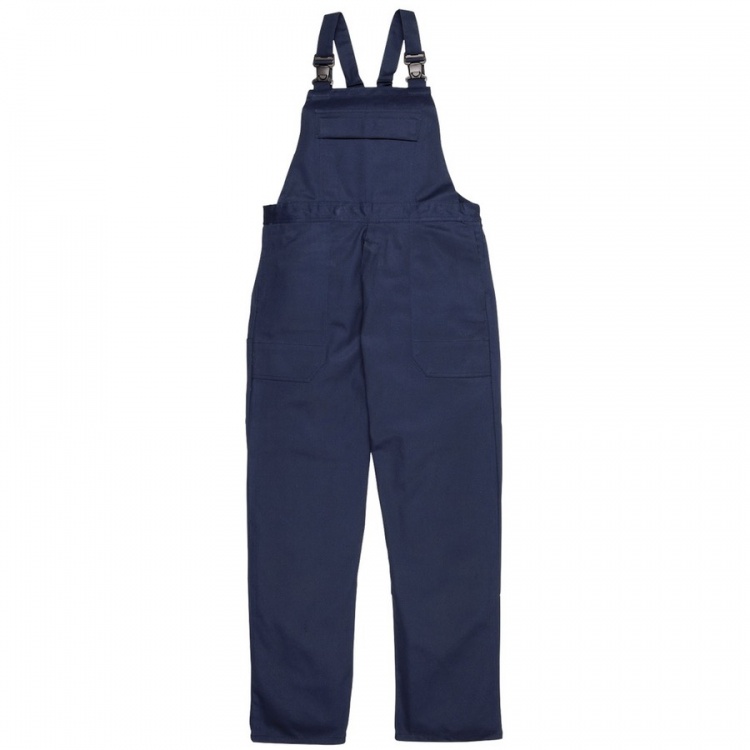

Portwest BIZ4 Features
- Protection against radiant, convective and contact heat
- Certified protection against molten metal splash
- Chest pocket with stud closure
- Back pocket
- Rule pocket
- Adjustable straps for a secure fit
- Durable, strong and long lasting brass zip
- Twin-stitched seams for extra durability
- 5 pockets for ample storage
- 40+ UPF rated fabric to block 98% of UV rays
- CE-CAT III
- CE certified
Portwest BIZ4 Shell Fabric
- Bizweld:
100% Cotton, FR Finish 330g
BIZ Fabric Information
Bizweld fabric is 100% cotton 330g with a flame resistant finish. This fabric meets EN standards EN ISO 11611 and EN ISO 11612 and offers excellent protection for welding and other allied industries.
EN ISO 11612 A1+A2, B1, C1, E1, F1
EN ISO 11611 CLASS 1, A1+A2
GOST - R CERTIFIED
BIZ Garment Benefits
The garments in the Bizweld Flame Resistant range have been specially designed to guarantee comfort, performance and safety whilst providing effective function at all times. This range has been rigorously tested to meet and adhere to the latest EN standards
Product Technical Information
Standards
- EN ISO 11612 A1+A2, B1, C1, E2, F1
- EN ISO 11611 Class 1 A1+A2
- IEC 61482-2 IEC 61482-1-1 Elim 8.3 CAL/CM²
- ASTM F1959/F1959M-12 ATPV 11.2 CAL/CM2 (HAF = 80.4%)
Washcare
Documentation
EN ISO 11612:2008
Protective Clothing Against Heat and Flame
The Performance requirements set out in this international standard are applicable to garment, which could be worn for a wide range of end uses, where the is a need for clothing with limited flame spread properties and where the used can be exposed to radiant, convective or contact heat or molton metal splashes.
This test uses standard methods and conditions to predict the performance of fabric/garment in the event of contact with heat or flames. Garment features such as seams, closures and logos must be tested as well as the fabric. Tests must be carried out on pre=treated components according to the manufacturers care label.
Specific Testing is listed below:
- Dimensional Charge
- Limited Flame Spread (A1+A2)*
- Convective Heat (B) – 3 Levels
- Radiant Heat (C) - 4 Levels
- Molten Aluminium Splash (D) – 3 Levels
- Molten Iron Splash E - 3 Levels
- Contact Heat (F) – 3 Levels (Temp 250 Degrees Celcius)
- Heat Resistance at a temperature of 180 Degrees Celcius
- Tensile Strength Must meet a minimum of 300N
- Tear Strength must meet a minimum of 15N
- Bursting Strength
- Seam Strength
Garment Design requires that coverage must be provided from the neck to the wrist and to the ankles.
Optional Testing includes water vapour resistance and manikin testing for overall burn prediction.
*This test must be carried out on fabric and seams.
EN ISO 11611: 2007
Protective Clothing for Use in Welding and Allied Processes
The International standard specifies minimum basic safety requirements and test methods for protective clothing for use in welding and allied processes (Excluding Hand Protection).
The International Standard Specifies two classes with specific performance requirements:
Class 1 is protection against less hazardous welding techniques and situations causing lower levels of spatter and radiant heat.
Class 2 is protection against more hazardous welding techniques and situations causing higher levels of spatter and radiant heat.
EN ISO 11611 requires that protective suits completely cover the upper and lower torso, neck, arms and legs. There are a number of other design requirements which must be followed to prevent molten droplets lodging anywhere on the garment.
Testing must be carried out on pre-treated components according to the manufacturers care label.
- Tensile Strength (must meet a minimum of 400N)
- Tear Strength (Must meet a minimum of 20N)
- Bursting Strength
- Seam Strength
- Dimensional Charge
- Requirements of Leather
- Limited Flame Spread (A1+A2)*
- Molten Droplets
- Heat Transfer (Radiation)
- Electrical Resistance
*This test must be carried out on the fabric and seams.
